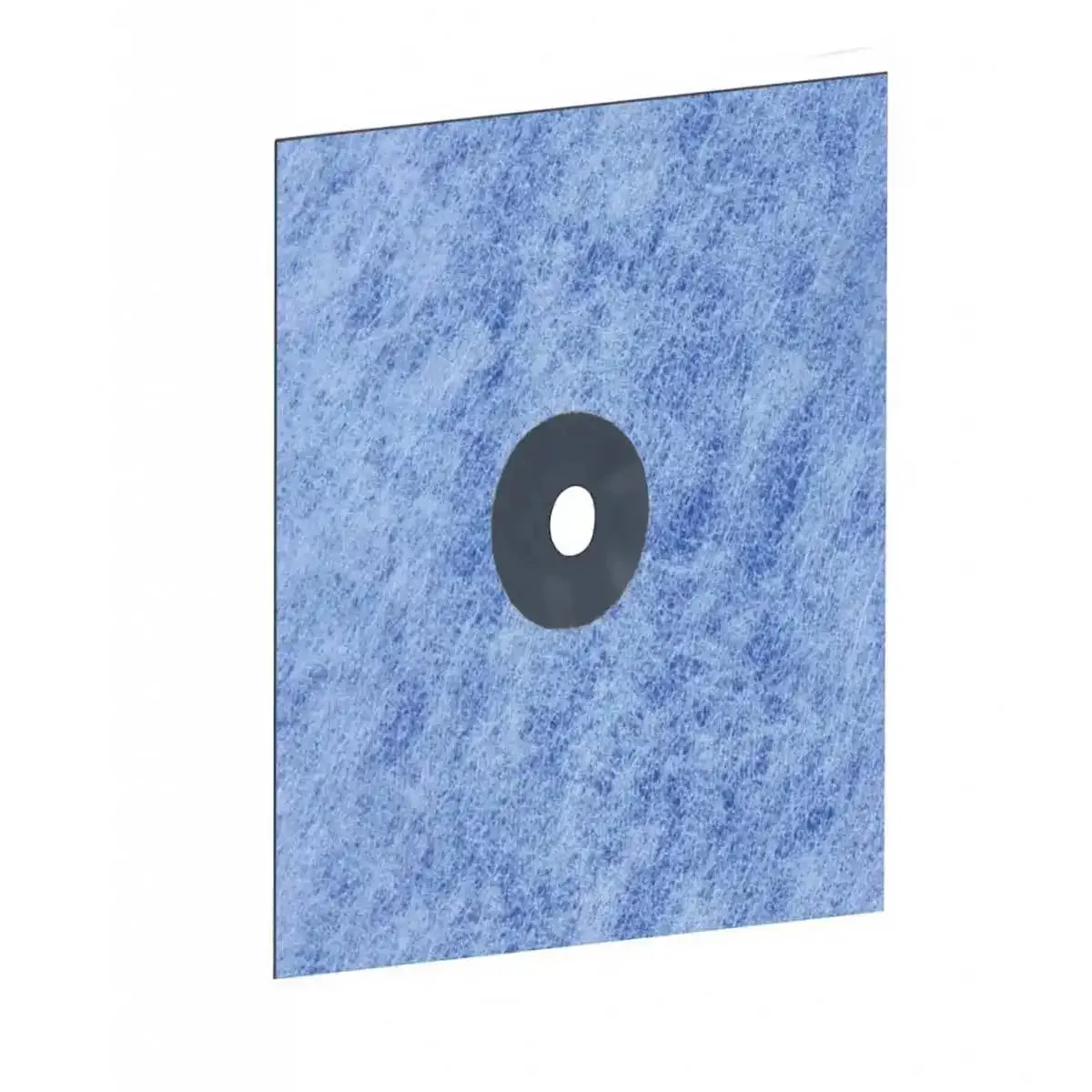

BLANKE Aqua WM Drain Collar

The BLANKE AQUA WM (drain collar) is a unique design of a punched sleeve, similar to BLANKE AQUA SHIELD BM/WM (floor/wall pipe sleeves), but with a deep drawn collar. This collar ensures an effective and safe connection of the waterproofing system (for example, BLANKE AQUA SHIELD 100) with drainage tubes. The drain collar can either be used as an interior collar (BLANKE AQUA WM DN 50-IA) or an exterior collar (BLANKE AQUA WM DN 50 AA) for drains. The collar dimensions are adapted to the following standard sizes: DN 50/DN 70/DN 100).

Features

• Lightweight waterproofing fabric
• No waiting to install tile
• Superior workability
• Crack isolation properties
• Suitable for interior and exterior applications
• Resistant to saline solutions, acids, alkaline solutions, many organic solvents, alcohol, and oils
• Resistant to micro-organisms, deterioration, and rot
• Waterproofing walls and floors in bathrooms; showers, saunas, locker rooms, and exterior decks, patio, balcony, and terraces not over occupied space

Suitable Substrates for Bonding:

• Plywood, drywall, backer board, cement

Technical Data

• Material: Polyethylene film with a fleece glued to the top and bottom
• Thickness of the PE Film: approx. 0.2 mm (approx. 0,008 inches)
• Diameter of hole: 13/15"
• Width/Length: 4" x 4"
